    The rugged all-round talent

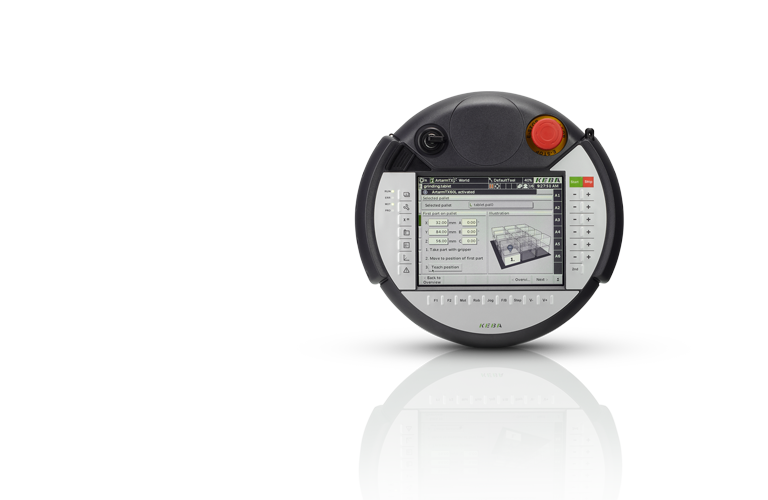

    KeTop T55

    Handheld terminal



    The convenient mid-range panel

    With the high-performance ARM Cortex A8 processor, the KeTop T55 forms a powerful embedded platform with low power consumption. Data can be transferred via USB port. To increase the operational safety of the devices, the product design is based on a modern FE computer simulation.

    The round shape and the double-walled housing are the result of this development, whereby shock resistance is ensured to drop heights of up to 1.5 m. With its many grip and holding positions, the KeTop T55 can be used comfortably and fatigue free by right- and left-handed persons.



    High-performance

    universal device

    Ergonomic

    design

    Ideal

    for complex processes

    Many

    accessory options

    Technical data

    KeTop T55
    Display
    TypeTFT
    Size6.5” (4:3)
    ResolutionVGA 640x480
    Touch sensoranalog-resistive
    BacklightLED
    Operating elements (max. 2 can be selected)
    Membrane keyboardmax. 3*16 buttons, 4 LEDs
    Key switch2 or 3 positions
    Push buttonno-detent / detent
    Potentiometeryes
    handwheel50 pulses/rotation
    Joystick3 axis
    CharacteristicsKEBA standard / KEBA robotics
    Safety elements
    enabling switch2 pcs., 3 levels, 2 channels, Integrated safety electronics
    emergency-stop button / gray stop button2 channels
    Safety categoryPLe acc. to EN 13849-1 or SIL3 acc. to EN 61508
