Solutions for machine tools

CNC technology for high-performance machine tools

Technology + partnership create competitive edge

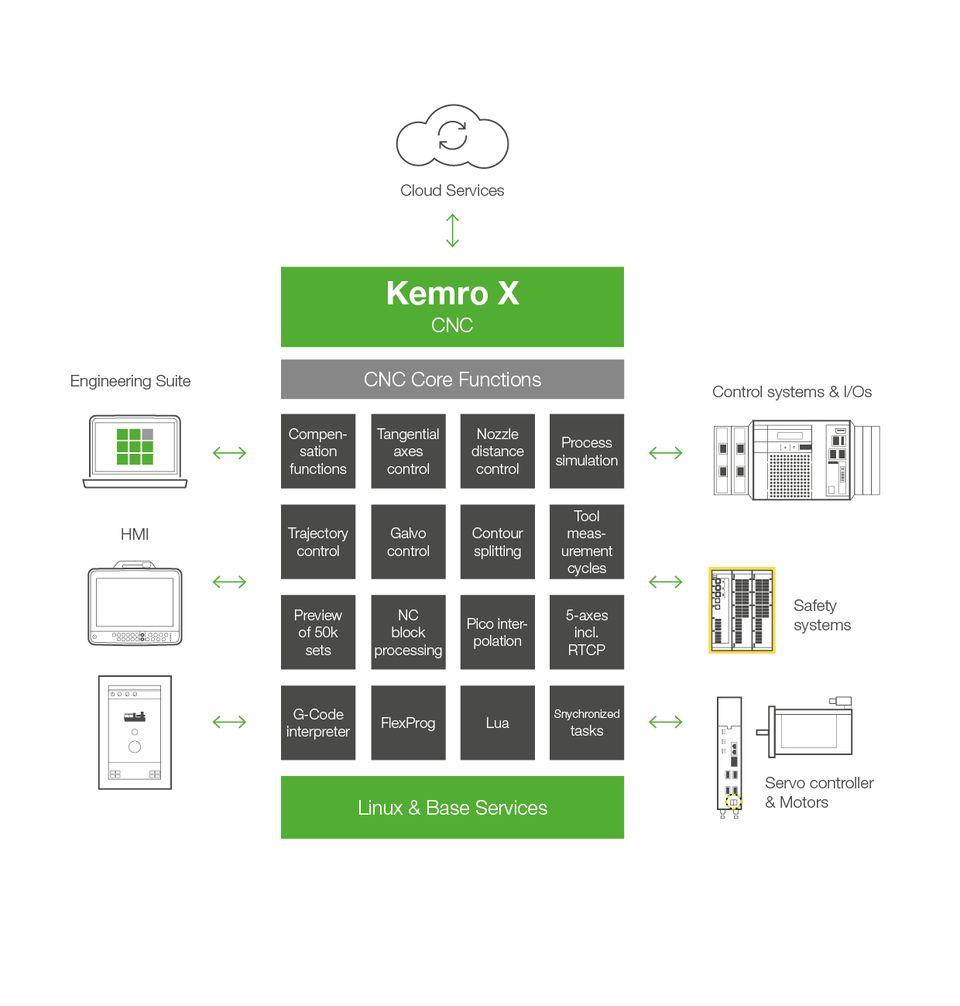

KEBA has been automating machine tools for more than 50 years and is one of the few companies worldwide to have its own CNC core. We are happy to share our experience and technologies with you to develop solutions that will set you apart from your competition.

Our CNC core has been the recognized benchmark in the industry for decades when it comes to high machining speed, precision, and flexibility. Thanks to the high-level language Lua and direct extensions in the CNC core, we are able to implement even special requirements efficiently and with high performance.

The machining or removal process is of crucial importance for the quality of a machine tool and its end products. That is why we develop and produce both precision tool spindles with magnetic bearings (6D spindles) and high-performance controls for laser sources and galvanometric scanner axes.

A comprehensive and cost-optimized portfolio of converters and motors is available for machine tools, offering a high degree of flexibility in machine configuration design.

KEBA HMI solutions impress with their high degree of innovation. Modern technologies such as real-time multitouch, force feedback, and the fully adaptive KeWheel enable completely new operating concepts. These technologies make completely new operating options a reality, regardless of which NC control you use.

Our solution portfolio for machine tools

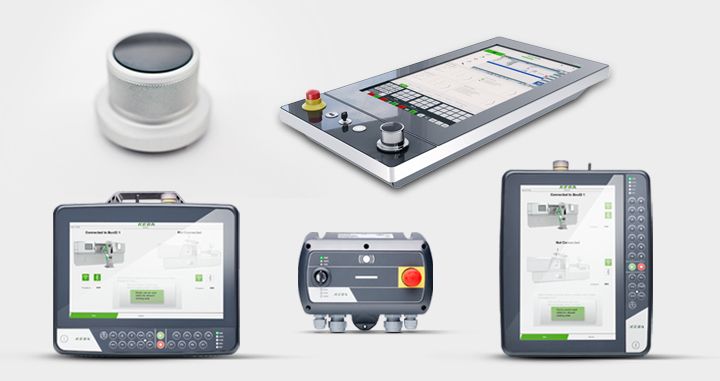

KEBA supplies complete automation solutions that includes mobile and stationary panels, CNC controllers, safety controllers, drive controllers with safe motion monitoring, KEBA I/Os, servo motors, tool spindles, laser source control, and galvanometric axes.

Machine-specific solutions

Your technological uniqueness can evolve

CNC systems for laser processing

The performance, variability and digitization of laser processing machines places extremely high demands on the automation system. Drawing on 40 years of expertise in CNC technology and many long-standing technology partnerships, KEBA offers open, innovative, and compact CNC solutions for a digital future.

2D laser processing
Tube cutting
Laser micro-processing
Combined punch/laser processing

More about laser processing

Magnetic bearing spindles

A machining revolution

KEBA offers a magnetically mounted spindle with the LeviSpin R140 drill spindle. The chips are broken up precisely by an oscillating movement superimposed on the feed.

Outstanding benefits

Processing speed increased by 200–400 %
Tool wear reduced to less than 50 %

More about magnetic bearing spindles

Drive technology

Milling, turning, grinding and bending machines place the highest demands on the drive technology. Our ServoOne CM and ServoOne drive systems are designed for this very purpose. They achieve the maximum precision and dynamic that are possible with the existing machine kinematics.

Fast sampling times: Setpoint specification via field bus, position and speed controllers: 125 μs, current controller: 62.5 μs
Low-noise detection of all analog variables and high computing power thanks to custom-developed drive ASIC
Compensation of encoder errors and mechanical errors
Large selection of feedback systems: Resolver, Hiperface, Hiperface DSL, SinCos, EnDat/rotative and linear encoders
Single-axis, double-axis, and triple-axis controllers require less space and save costs
Passive and active supply units
Built-in safety technology

Contact now

HMI for machine tools

New custom visualization provides better differentiation of your machine

A separate custom visualization emphasizes the particular strengths of your machine tool and improves the usability of your machine tool. The KeStudio ViewEdit project planning software can be used to create a controller-independent visualization application in addition to the NC visualization

More about HMI

The future of your machine tool HMI starts now

Innovative technologies for user-centered user interfaces

The HMI provides the direct contact between the user and your machine. This critical interface decides whether your machine appears to be intuitive, powerful and well-designed. Our usability experts work with you to quickly develop the new user interface for operating your machine. User-centered design is used to create user interfaces that work for people.

Product illustration of a KEBA KeWheel rotary push button

KeWheel - adaptive MRF rotary push button

With the fully adaptive rotary push button KeWheel as the main operating element, input options such as for overrides, hand wheels, mode-selection switches, axis travel buttons, and the user interface can be combined in a single device. The KeWheel provides the operator with additional information about the condition of the machine through a broad range of haptic feedback.

Innovative control elements - The KeWheel
