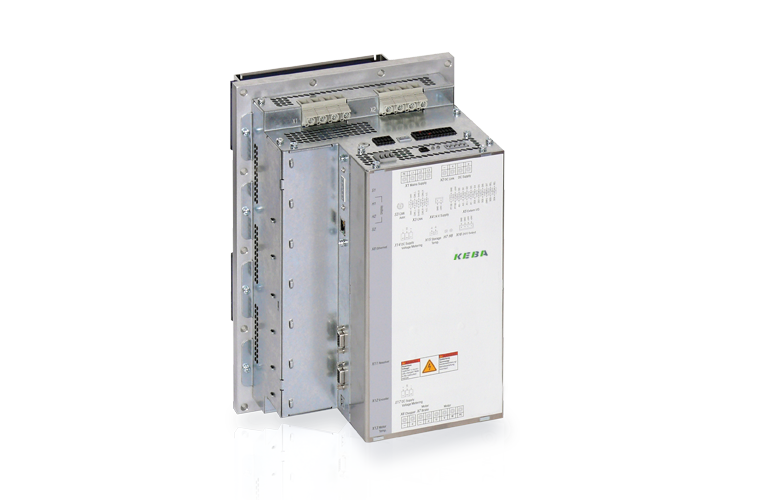

PitchMaster II+

A Pitch system tailored to your wind turbine installation

Proven industry standard and sophistication

The PitchMaster II+ products have been designed for the rugged external conditions in the rotating hub of a wind turbine installation. They stand out for their great robustness and an extended temperature range in the cabinet from -30 to +70°C.
The housing design provides for flexible installation and an increased resistance to vibration, impact, and continuous shocks.

Your benefits at a glance

AC and DC motor support: The software supports the closed-loop control of synchronous and asynchronous motors and DC motors
Built-in Gl2010-compliant monitoring of the emergency supply system without additional converters

Service diagnostics

and remote maintenance via Ethernet

Software features

Commissioning with speed and ease

High overload capacity

available in two device sizes

TÜV Rheinland certificate

for the emergency pitching safety function with performance level d

more details

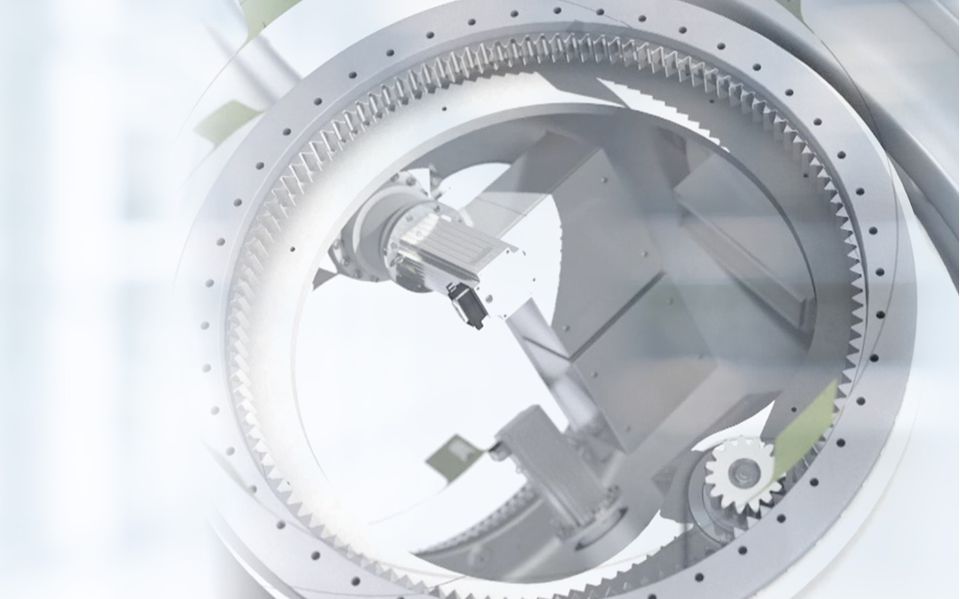

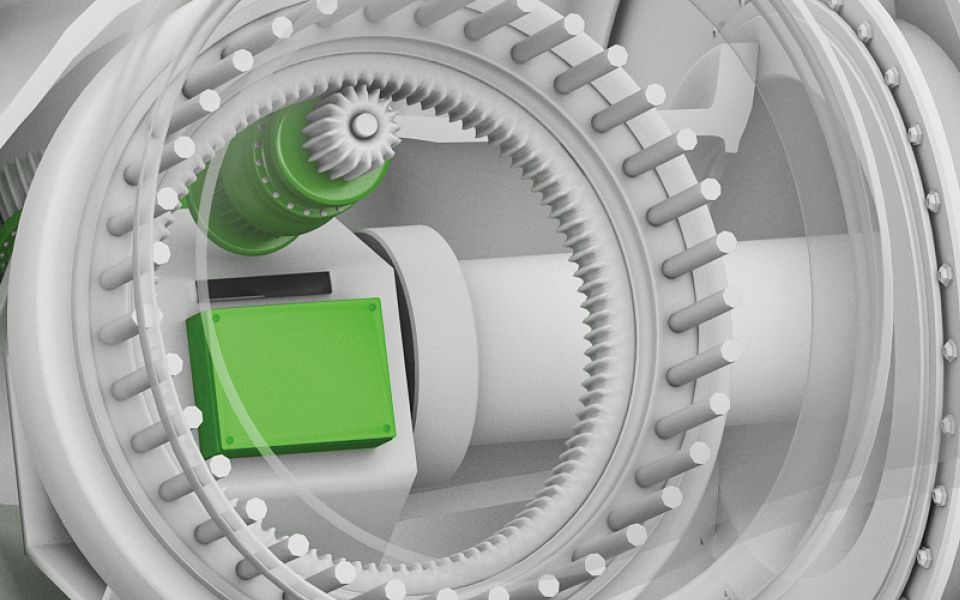

Illustration of a hub from inside a wind turbine

The Pitch system for your application

The PitchMaster II+ Pitch drives are particularly robust and were specially developed for the tough conditions in the rotor hubs of wind turbine installations.
The high functional integration of the PitchMaster II+ drives simplifies the design and significantly reduces the Pitch cabinet volume as well as the required wiring. The TÜV-certified functional safety accelerates the certification process for your wind turbine.
