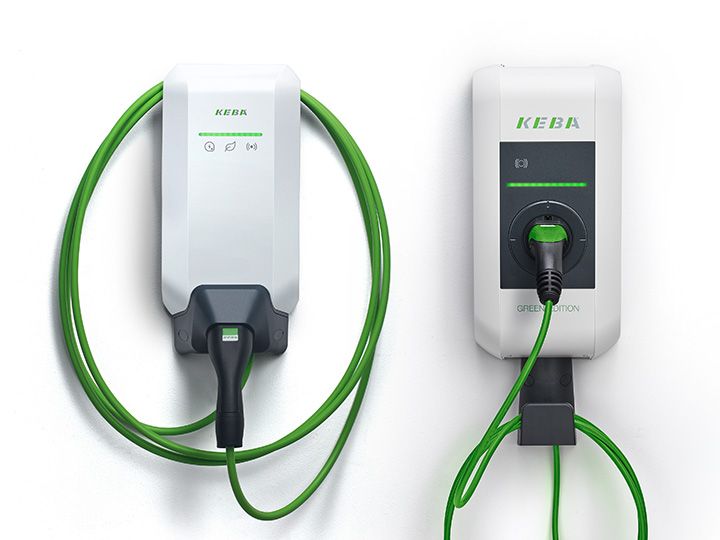

    KeContact P30

    The next generation wallbox

    The charging station for today and the future

    KeContact P30 is already the third generation of wallboxes from KEBA that offers new application possibilities thanks to state-of-the-art communication standards and features. We have made our power charging stations intelligent and equipped them with countless features and communication standards. So you can not only charge, but also control, communicate and network.

    KeContact P30 becomes a communication center for intelligently controlled charging due to integration into smart home or back-end systems, the linking of photovoltaic systems or the options for billing. It fulfills all the requirements of electromobility - not only for today, but also in the future.

    Equipment series

    The KeContact P30 is available in different configuration series, which makes it the ideal charging station for your needs.

    a-series

    Combines 1- and 3-phase devices in one series - for easy and safe charging in offline mode.

    Learn more

    c-series

    The online wallbox with numerous interfaces and MID certified meter.

    Learn more

    x-series

    The communications centre with a 4G/LTE interface for online operation and intelligent load management.

    Learn more

    Our first carbon-neutral wallbox

    KeContact P30 GREEN EDITION

    Made in Austria

    Made in Austria

    with the highest quality standards and production in Linz, Upper Austria

    Highest availability

    Highest availability

    Temperature derating, auto recovery and DC fault monitoring

    Highest security

    Highest security

    Multirating device (current, voltage, energy) and separated connection area

    Easy to use

    Easy to use

    through zero-touch operation, one-person assembly and guided commissioning

    Product comparison

    a-seriesc-seriesx-series GREEN EDITION
    Phases
    1-phase
    3-phase
    Charge connectors
    Type 2
    Type 2 with shutter
    Type 2 with fixed cable
    Cable lengths
    4 meters
    6 meters
    Charging capacity
    10A
    13A
    16A
    20A
    25A
    32A
    Technical features
    DC leakage detection
    Metering
    Enable input
    Switch output
    Communication interfaces
    USB
    Ethernet RJ45
    Ethernet LSA+
    UDP
    Modbus TCP
    Mobile communication 4G/LTE
    WLAN
    Load management
    Master (OCPP, load management)
    Client (OCPP, load management)
    Options for user authorization
    RFID
    Download detailed product comparison

    Your advantages at a glance

    Quality

    All KEBA products meet our high quality demands. We manufacture exclusively at our production facility in Linz, Austria and continously integrate numerous features for more safety and availability in our products.

    Availability

    We do everything possible so that your wallbox is always available and your electric car is always fully-charged. This is achieved thanks to a combination of unique features, for example temperature derating or the auto recovery function. KeContact P30 also includes DC leakage detection, which eliminates the need for an expensive upstream RCD type B.

    Safety

    The integrated multirating device (current, voltage and energy) increases not only the availability of the charging station but also its safety. The separated connection area ensures additional safety when commissioning and during running operation.

    Simplicity

    With our "easy to use" claim, we always orientate ourselves to the requirements of all users. KeContact P30 therefore impresses with easy one-person installation, guided commissioning for supporting the initial system check and zero-touch operation. It is as simple as that.

    Charge connectors

    Our P30 is available with the following charging connectors. Charging power and charging mode (single-phase, three-phase) depend on the selected series (a, c, x).

    Typ 2

    Suitable for all electric vehicles with the corresponding charging cable.

    Type 2 with fixed cable

    Primarily for European vehicles.

    Typ 2 mit Shutter

    Specially for France and Italy.

    Communication interfaces

    • USB for firmware updates or log file downloads without a PC or notebook
    • Ethernet RJ45 for firmware updates or log file downloads via PC or notebook
    • Ethernet LSA+ for connecting external meters via Modbus TCP and for a permanent communication connection to OCPP back-end, smart home server or other KeContact P30
    • Mobile communication 4G/LTE for the connection to OCPP central systems
    • WLAN for an easy access to the configuration and for the wireless integration of wallboxes in an existing network

    Certifications

    • CE Label
    • UL Certification
    • Nissan EV-Ready
    • Renault Z.E. Ready 1.4D
    • OCPP 1.5 or OCPP 1.6

    Downloads

    Brochure Data sheet EU Declaration of Conformity
