KeContact DCL10 Pillar

Space-saving DC dispenser

The compact fast charging station

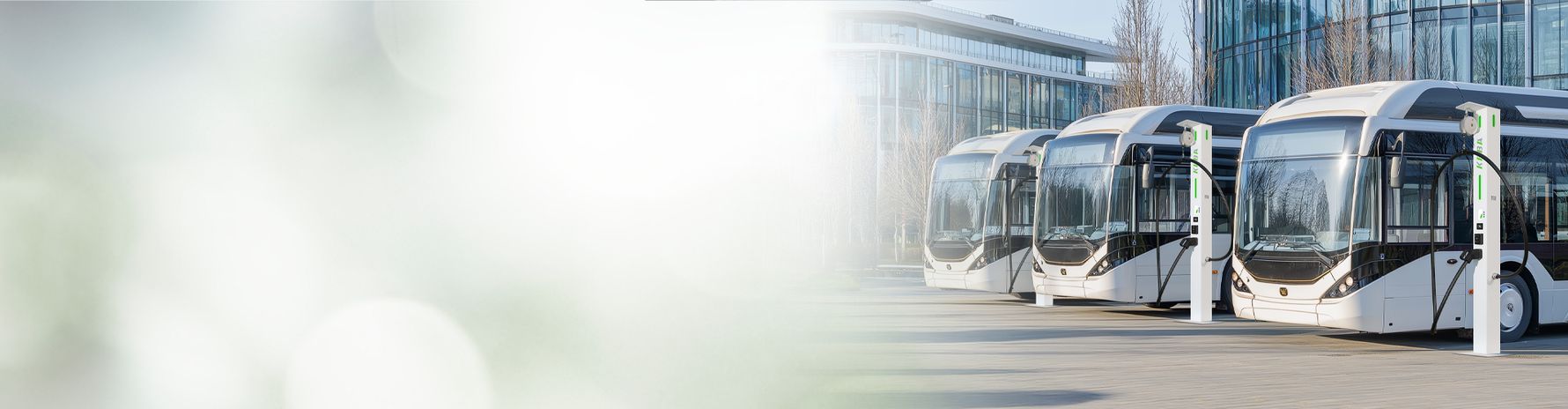

Fast charging specifically for trucks and buses

Whether at the freight forwarding company’s depot or the bus station — where many e-buses and e-trucks are charging, minimal space consumption is very important. KEBA developed the KeContact DCL10 Pillar precisely for this purpose. Its name says it all — with its slim, tall design, the dispenser is literally a charging pillar. Combined with a long cable and a special cable holder, it makes it particularly easy to connect various and especially large e-vehicles like e-buses and e-trucks, no matter where their charging port is located.

The advantages at a glance

Minimal footprint of <0.5 m²
Simple and cost-effective installation
High service friendliness
Low operating costs thanks to uncooled cable
Optional 8-meter charging cable with cable management for practical handling
Auto Charge: Authentication according to ISO 15118 via vehicle ID

Get advice now

Everything under control.
Thanks to the KEBA Service Portal.

Practical charging infrastructure doesn’t stop at reliable hardware and intelligent control. In the KEBA Service Portal, all charging stations, user IDs, and charging current tariffs for direct payment can be managed.

In addition, error messages and comprehensive analysis options help to keep downtime to a minimum. This is important for CPOs, but especially for fleet owners whose vehicles are in use around the clock and therefore need to charge reliably.

Strong team

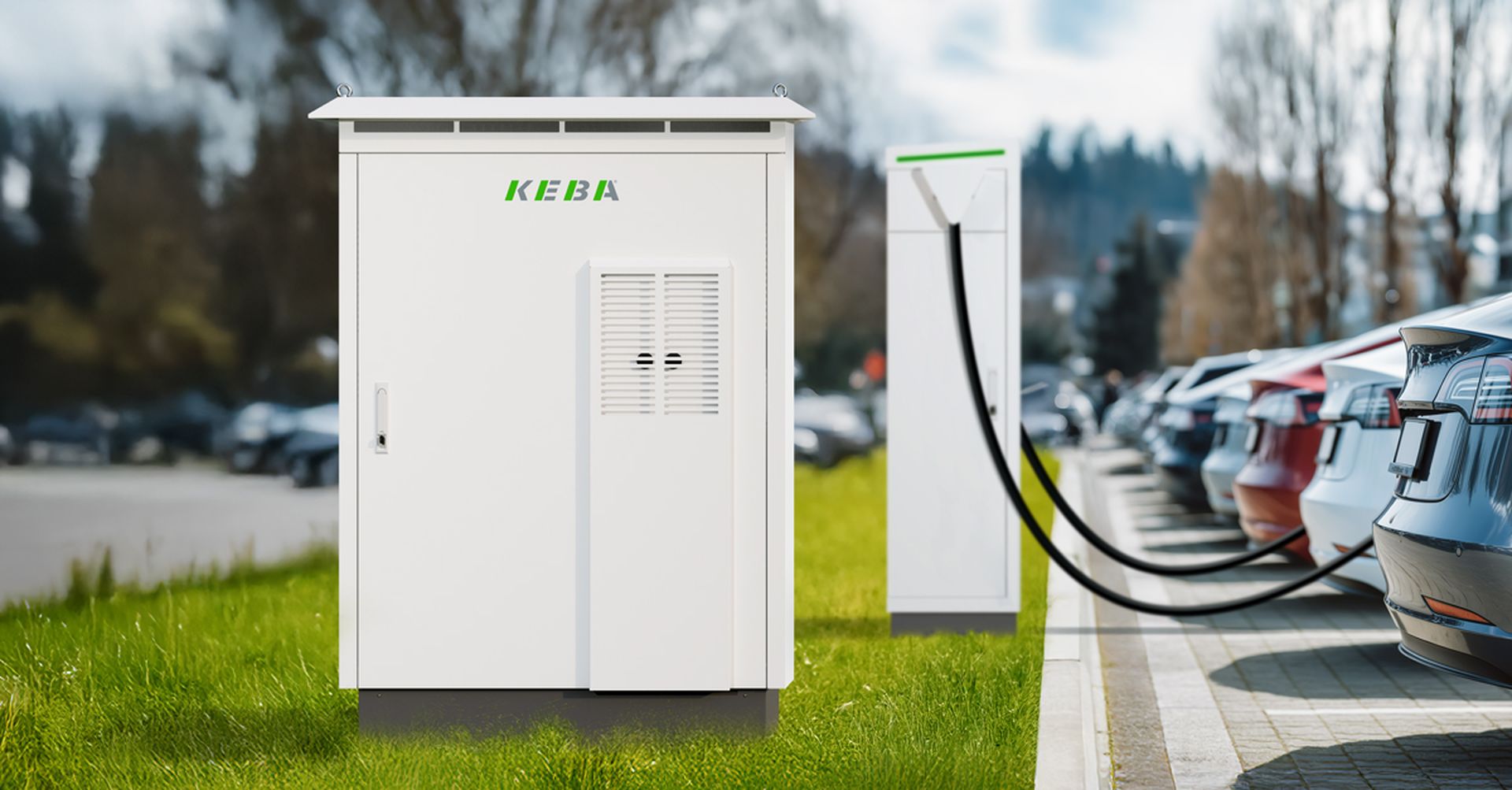

KeContact DCU10 — the suitable power unit for the KeContact DCL10

The KeContact DCL10 Pillar is a dispenser. The actual charging power is provided by a separate rectifier that converts the alternating current from the grid into direct current for the battery of the e-vehicles. For this purpose, KEBA offers the KeContact DCU10 Power Unit.

This is an extremely high-performance power electronics unit housed in a weatherproof and very compact enclosure. One power unit can supply up to four charging points with energy, with a total output of 320 kW that can be freely distributed.

More about the DCU10 Power Unit

Flexible installation

The compact dimensions and low weight of the KeContact DCL10 Pillar and the KeContact DCU10 Power Unit allow for simple and flexible installation.

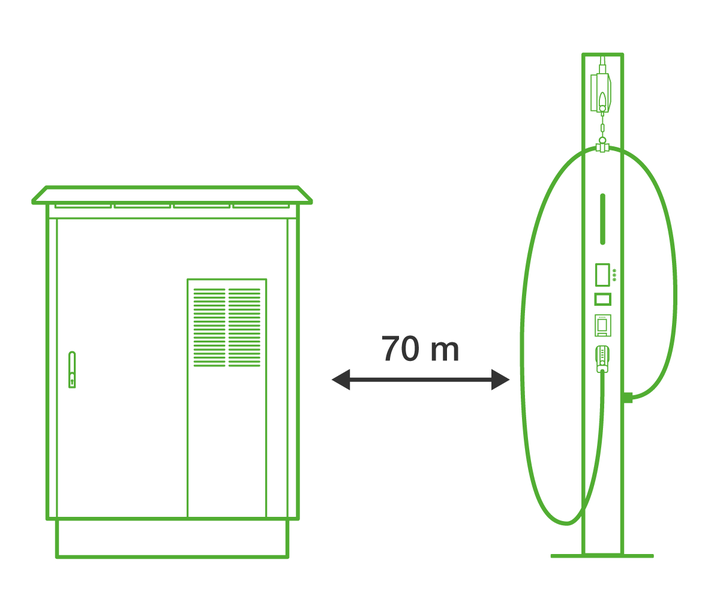

Another advantage: The distance between the KeContact DCU10 Power Unit and the KeContact DCL10 Pillar can be up to 70 meters.

Freely scalable

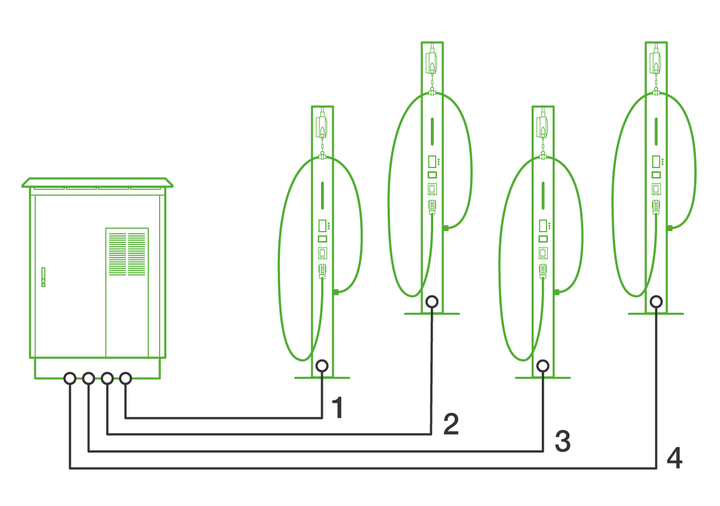

Charging infrastructure with the KeContact DCL10 Pillar can be freely scaled. Up to four DCL10 Pillars can be connected per KeContact DCU10 Power Unit.

AFIR-compliant direct payment

Pay like at the supermarket checkout: fast, easy, and without membership, subscription, or anything similar. This means maximum payment convenience for your customers and lower maintenance costs for you as the charging point operator.

Your users pay with:

Debit and bank cards

Credit cards

Fleet and customer cards

Future-proof

Modular product /
service solutions

Full flexibility: scalable and upgradable system products

Customer service at the highest level

No commitment and maximum payment convenience

Maximally cost-effective

Quick profitability — no mandatory backend costs

Ready for upcoming EV generations

Also charges future vehicles thanks to voltages up to 920 V

	KeContact DCL10 Pillar
Technical data DC		Technical data DC
Rated voltage	max. 1000 V_DC
Rated current peak (max. charging current)	500 A
Rated maximum power	480 kW
Charging connector	CCS Combo-2
Technical data enclosure		Technical data enclosure
Dimensions	H/W/D: 2510 / 200 / 460 mm (including cable management) H/W/D: 2005 / 200 / 200 mm (without cable management)
Weight (max.)	203 kilograms
Mounting location/type	Indoor/outdoor, floor mounting on concrete base (foundation)
Relative humidity	5–95% non-condensing
Temperature ranges	Environmental conditions / operation / storage / transport: -25 to +45 °C
Enclosure / Protection rating	Stainless steel 1.4301 (AISI 304), robust design (IP55), white powder-coated
Custom design	Yes, from minimum order quantity
Operation		Operation
Display indication	Yes
Display size (inches)	5”
Operation	Buttons
Accessible	Optional
Status display (Charging status for users)	Status LED on the pillar, via 5” display, via online access
Charging cable		Charging cable
Outputs (DC)	1
Charging points	1
Number of charging cables	1
Charging cable with liquid cooling	-
Simultaneous charging of multiple vehicles	-
Cable length	5 m (without cable management) and 5 m / 8 m (with cable management)
Billing system or authentication method		Billing system or authentication method
NFC Reader	Optional
Energy meter (MID)	Optional
Charging session authentication	RFID, OCPP, vehicle ID (MAC), free charge
Payment options (App, card, etc.)	1. RFID card 2. Credit/debit cards (Mastercard, VISA), Maestro/Bankomat (depending on acquiring bank) 3. Mobile payment (Google Pay / Apple Pay)
Direct payment	Optional
Payment terminal hardware	Worldline VALINA
Standards & certifications		Standards & certifications
Proven compliance with the following guidelines	Complies upon receipt of the test report
Complies with technical basic standards:	In progress
IEC 61851-1	In progress
IEC 61851-23	In progress
IEC 61851-21-2:2018	In progress
DIN SPEC 70121:2014	Yes
DIN EN ISO 15118-1/2	Yes
German calibration law	Yes
IEC 62196-3	Yes, via charging cable manufacturer
Extras		Extras
Interface for load management	Yes, Modbus TCP via the associated Power Unit
Advertisement displayable	Yes
Operator portal	Location-independent self-management via online access
Upgradeable	Yes

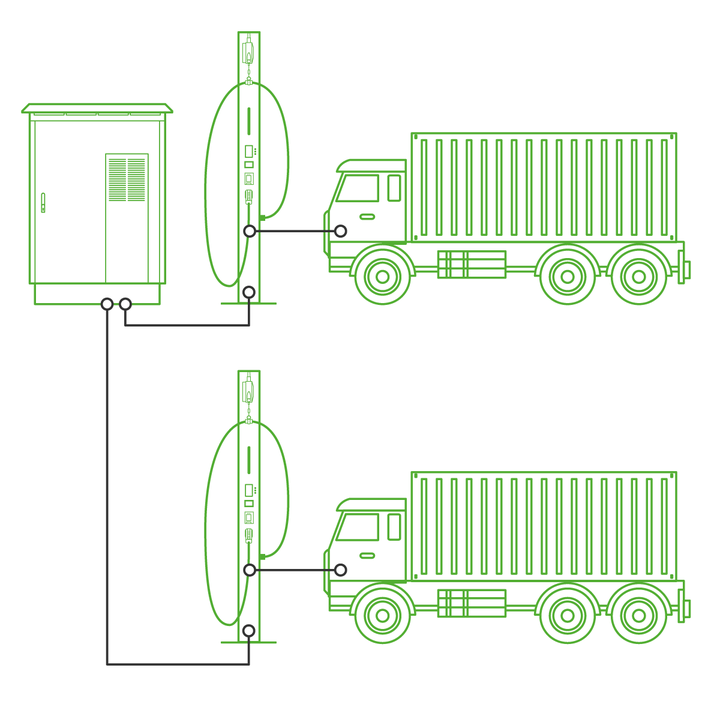

Example setup 1

2x KeContact DCL10 Pillar
1x KeContact DCU Power Unit Dual 240

Max. charging power per charging point at single usage (1 vehicle charging): 240 kW @ 1000 V

Max. charging power per charging point at double usage (2 vehicles charging simultaneously): 120 kW @ 1000 V_DC

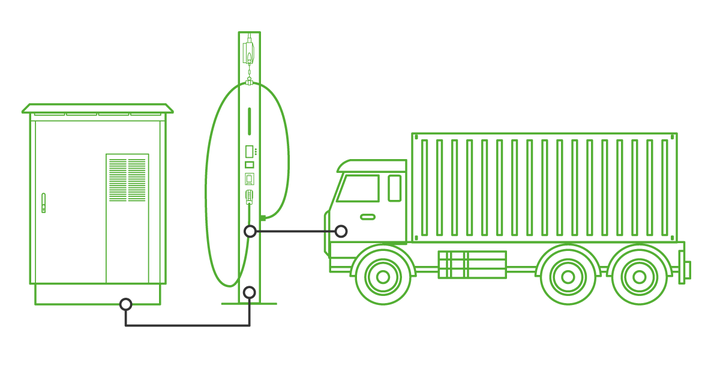

Example setup 2

1x KeContact DCL10 Pillar
1x KeContact DCU Power Unit 120

Max. charging power per charging point: Always guaranteed 160 kW @ 1000 V_DC

Example setup 3

4x KeContact DCL10 Pillar
1x KeContact DCU Power Unit Quadruple 240

Max. charging power per charging point at single usage (one vehicle charging): 240 kW @ 1000 V_DC

Max. charging power per charging point at double usage (two vehicles charging simultaneously): 120 kW @ 1000 V_DC

Max. charging power per charging point at quadruple usage (four vehicles charging simultaneously): 60 kW @ 1000 V_DC
