Reliable, precise, standard-compliant
The competence center for your EMC tests
EMC tests as the basis for your CE declaration
Your specialized test laboratory for electromagnetic compatibility
Our EMC test laboratory supports manufacturers and developers in reliably qualifying their products for the European market. Using state-of-the-art measurement technology and experienced experts, we test the electromagnetic compatibility (EMC) of your devices in accordance with relevant standards and directives. In this way, we ensure that your products work without interference and do not affect other systems.
From the initial assessment and preliminary tests to the final product qualification, we guide you efficiently through the entire process. The added value for you: faster market launch, reduced development risks and the certainty of meeting all relevant requirements on the way to CE marking.
-
Experience with impact : Our team of highly qualified test engineers and consultants shortens lead and throughput times. You also benefit from our high standards of precision and practical results
-
More than just compliance with standards: Our understanding of values goes beyond standardized testing - as a long-term partner, we support you in your project to optimize your product
-
Flexible & approachable: Personal and direct contact between the client and testing technician is important to us - this enables flexible scheduling, on-site modifications and clear and transparent processes
-
All-round support: From pre-compliance tests to support with the CE declaration - we are at your side
Standards and specializations
Extract of available test methods, test equipment, standards and specializations
| Tests | Details | Test equipment |
|---|---|---|

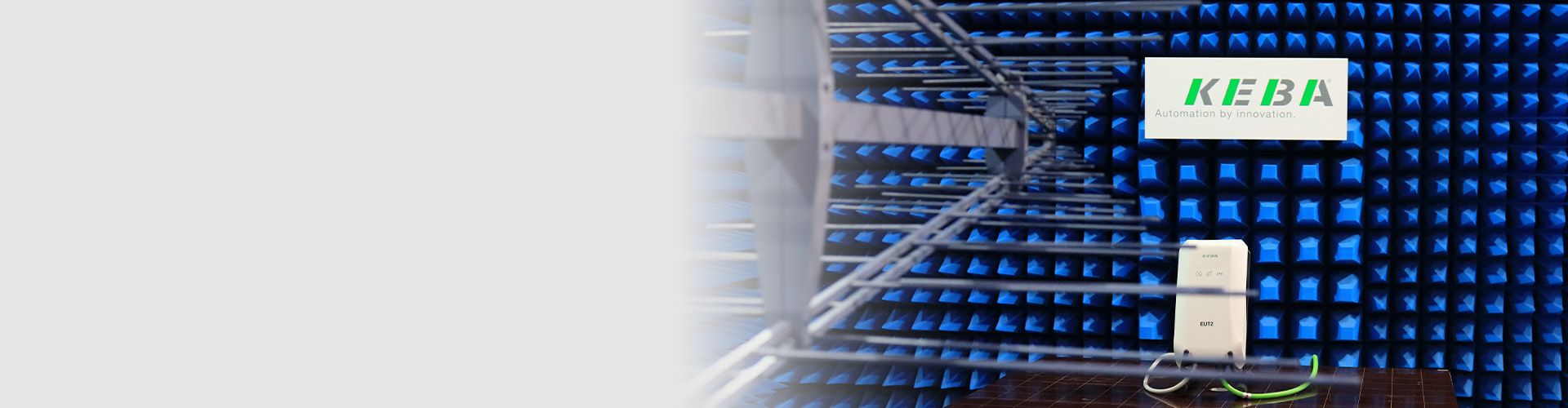

| Measurement of the radiated interference emission CISPR 16-2-3 | Partial anechoic chamber, 3 m 30 MHz - 6 GHz Turntable diameter: 2.0 m Weight load turntable: 1000 kg | Partial anechoic chamber: up to 18 GHz, Siepel Measuring receiver: ESR7, Rohde & Schwarz Broadband antenna: HL562E, Rohde & Schwarz |
| Measurement of conducted emissions CISPR 16-2-1 Leistungs- und Oberschwingungsanalysator HA1600, Aim-TTi | 150 kHz - 30 MHz AC 1-phase up to 16 A AC 3-phase up to 32 A DC RJ45 communication cables | Measuring receiver: ESR7, Rohde & Schwarz Network emulation (LISN): ESH2-Z5, Rohde & Schwarz Impedance stabilization network (ISN): ISN S8, Schwarzbeck |
| Measurement of harmonic currents EN 61000-3-2 | AC 1-phase up to 4.4 A (informative) | Power and harmonics analyzer HA1600, Aim-TTi |
| Measurement of the Voltage changes, Voltage fluctuations and flicker EN 61000-3-3 | AC 1-phase up to 4.4 A (informative) | Power and harmonics analyzer HA1600, Aim-TTi |
| Discharge of static electricity (ESD) EN 61000-4-2 | 16.5 kV air discharge 9 kV contact discharge HCP and VCP | ESD generator: SESD 200, locks |
| High frequency electromagnetic fields EN 61000-4-3 | Partial anechoic chamber 80 MHz - 1 GHz 20 V/m> 1 - 3 GHz 10 V/m 3 - 6 GHz 3 V/m Turntable diameter: 2.0 m Weight load turntable: 1000 kg Uniform field area: 1.5 x 1.5 m | Partial absorber hall: up to 18 GHz, Siepel Signal generator: SMB100A, Rohde & Schwarz Amplifier: BBA100/150, Rohde & Schwarz Power meter: NRP2 with NRP-Z91, Rohde & Schwarz Logarithmic-periodic antenna: HL046, Rohde & Schwarz Horn antenna: HF907, Rohde & Schwarz Field probe: NBM-520 with EF-0691, Narda |
| Fast transient electrical disturbances (burst) EN 61000-4-4 | up to 5.5 kV AC 1-phase up to 16 A AC 3-phase up to 32 A DC | Hybrid generator: UCS 500N5, EM test / IMU-MGS, EMC partner 3-phase coupling network: CNI 503A2 / 32 A, EM-Test Capacitive coupling clamp: HFK, EM test / CN-EFT1000, EMC partner |
| Surge voltages (surge) EN 61000-4-5 | up to 5.1 kV AC 1-phase up to 16 A AC 3-phase up to 32 A DC Data Line coupling network | Hybrid generator: UCS 500N5, EM test / IMU-MGS, EMC partner 3-phase coupling network: CNI 503A2 / 32 A, EM test Data line coupling network up to 4 asym. lines: CDN-DATA-4L, EMC partner |
| Conducted disturbances induced by radio-frequency fields EN 61000-4-6 | 10 - 150 kHz 10 V (informative) 150 kHz - 80 MHz 20 V 80 - 230 MHz 20 V (informative) | Signal generator: SMC100A, Rohde & Schwarz Amplifier: 75A250, Amplifier Research Power meter: NRP6AN, Rohde & Schwarz Coupling networks: M2, M3, M5, USB 2.0/3.0, RJ45/S, S9, L1, T2, Schlöder Coupling clamp for cable diameters up to 20 mm: KEMZ 801, Teseq |
| Magnetic fields with power engineering frequencies EN 61000-4-8 | 50 Hz to 30 A/m (informative) | Helmholtz coil for table-top devices, KEBA |
| Voltage dips, short interruptions and voltage fluctuations (AC) EN 61000-4-11 | AC 1-phase 100% up to 16 A 80% up to 12.8 A (20 A for 5 s) 70% up to 11.2 A (23.6 A for 5 s) 40% up to 6.4 A (40 A for 3 s) | Hybrid generator: UCS 500N5, EM-Test / IMU-MGS, EMC partner Transformer: SRC16-1P, EMC-Partner |
EMC test procedure
Requirements analysis & test planning
Clarification of standards, specifications and operating conditions
Examination preparation
Preparation of the test specimens and integration into the test environment
Test execution
Product testing with continuous monitoring and data acquisition according to your specifications
Analysis of the results
Analysis of the results and identification of weak points as well as the creation of standard-compliant test reports
Feedback & Optimization
Feedback to the customer and support with product optimization
Services
At KEBA we support you with our experience in product testing for your application.
Pre-Compliance Tests
Pre-compliance tests identify potential weaknesses at an early stage - for efficient product optimization during development, shorter test cycles and faster market entry.
Test reports
Our test reports provide clear and comprehensible results - as a reliable basis for your technical documentation, conformity assessment and product optimization.
Consulting
Our targeted consulting combines technical expertise with practical solutions - for efficient test processing and successful product qualification.
