KeEnergy

Biomass heating control p1000

The industry solution from KEBA for logs, pellets and woodchips

The most reliable hardware and software for your biomass heaters

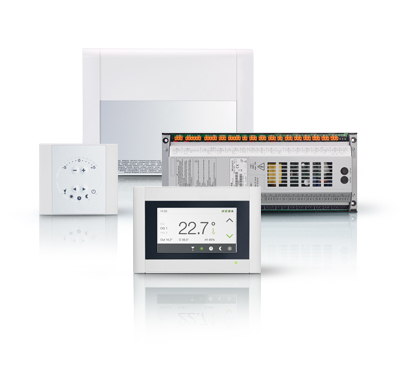

The KeEnergy p1000 biomass control offers an outstanding combination of hardware and software for your heaters as a complete package for pellet, woodchip or log heating systems. The hardware is of industrial quality; the individual components are connected via a fast serial bus and are freely expandable. Software packages that are optimally matched to one another facilitate fast and individual creation of a new heating application.

Control system for
Pellet heating

Chip heating

Wood log heating

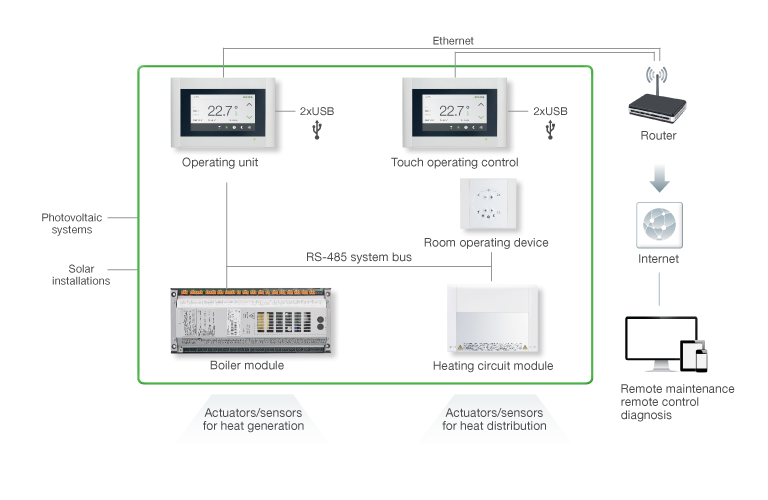

System overview

AP420

Operating unit

The AP420 operating unit with integrated control is installed either directly in the boiler or in a living room. It is used, on the one hand, for visualization and operation and, on the other hand, for the control and regulation of the entire heating system. The high-resolution, graphics-capable 4.3” color display with intuitive touch operation offers convenient operation for the end customer and the service technician.

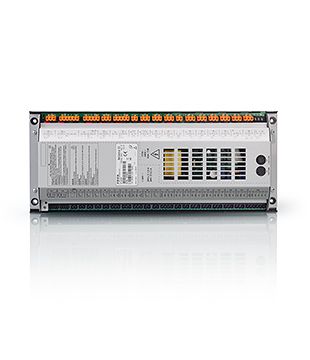

CP021

Boiler module for biomass

The boiler module is provided with a robust metal housing for the protection of the electronics. Thanks to the UL compliant development, the heating control is ready for international markets. In addition, the module satisfies the common legal standards and directives and is prepared for the implementation of safety standard EN303-5/2012 for central heating boilers.
IM110

Heating circuit module

The heating circuit module is used for the automation of the heat distribution and supports a large selection of hydraulic schemes. It includes actuators and sensors for two heating circuits, a hot water tank, a buffer and a thermal solar system. An especially simple connection technology, a convenient wiring compartment and many cable entires facilitate fast and simple installation of the heating circuit controller.
OI420 / OI423

Room controller

The OI420/OI423 room controllers enable convenient adjustment of the desired room temperature and the operating mode of the heater right from the living room. Both the room target temperature as well as the operating mode are set using easy-to-operate buttons. The remote control is available in two versions: the standard version as the OI420 wired version and optionally as the OI423 radio version.
